Three Step Campus Fabric!

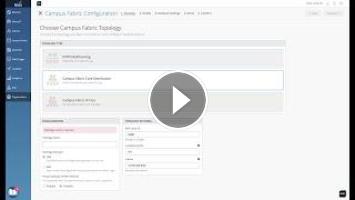

Watch this walk provided by TME Rick Bartosik on how to easily deploy campus fabrics with Juniper’s new campus fabric workflow.

1:09: Campus Fabric Build

1:19 Organizational Level Build

1:46 Choose your Campus Topology and Configurations for the Org Build
Note: for a site build, there are three options. EVPN/VXLAN Multihoming, EVPN core/distribution, and IP Clos.

2:53 Select Devices. Select the switches that will be used in each layer of the topology and provide Router IDs as required.

4:34 Configure Networks - Add Pre Configured Template:
With the power of Mist, define networks, routing options and port configurations.

6:11 Select switch ports for Fabric connections

8:03 Access device through Remote Shell
BGP, Pushing Configurations down to the devices.

10:03 Telemetry of EVPN Insights, Connected Device

10:38 Edit Campus Fabric, Add Secondary device

11:30 BGP convergence. Device is On.

12:00 Access 2 - Remote shell.

12:15: ethernet switching table

12:24 show arp, devices operating.

13:08: Core1 and Core2

13:20: Review of everything we’ve built:
• Campus Fabric EVPN/VXLAN built through the Mist Cloud.
• 5 stage Clos - access layer, distribution layer, core layer, attached to a prebuilt SRX firewall
• Port Profile configured for BGP, build fabric through the template.
• Imported template for layer 2 and layer 3.
• Applied that against port values.
• Now you can see which links are being used more than the other.

Powered through the modern Mist AI cloud, this new switching solution delivers a seamless, standards-based L2 / L3 fabric without the deployment headaches and operational costs that traditionally occur in these environments.

You can now deploy common standards-based campus fabrics, such as EVPN multihoming, EVPN core/distribution, and IP Clos with an easy 3-step process. Simply: select your topology, assign devices/roles, and push configurations!

Juniper Mist campus fabric workflow is part of Juniper’s Wired Assurance Solution. Get in touch with us today!
